A large range of axial fans for wall mounting applications upto diameter 1000 mm and mounting in ductwork upto 1600 mm.

Axial Fans

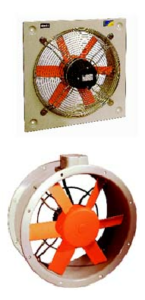

Fan HEP – HEPT

Axial fans with airflow from 1,250 to 18,700 m³/h with diameters from 250 to 630 mm.

Wall-mounted version with sheet steel support frame (HEP) and tubular version with sheet steel casing (HEPT), each with glass fibre reinforced polyamide 6 impeller. IE3 class F motors with ball bearings and IP65 protection, single or three-phase, 2-4-6 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation HEP_HEPT



Fan HC

Axial fans with airflow from 2,200 to 54,000 m³/h with diameters from 250 to 1,000 mm.

Wall-mounted version with sheet steel support frame, with glass fibre reinforced polyamide 6 impeller. IE3 class F motor with ball bearings and IP65 protection, single or three-phase, 2-4-6 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation HC



Fan HCH – HCT

Axial fans with airflow from 1,000 to 71,850 m³/h with diameters from 250 to 1,000 mm.

Wall-mounted version with sheet steel support frame (HCH) and tubular version with sheet steel casing (HCT), including impeller version PL made of glass fibre reinforced polyamide 6 or version AL made of cast aluminium. IE3 class F motors with ball bearings and IP55 protection, single or three-phase, 2-4-6 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation HCH



Fan CJHCH

Axial fan with airflow from 11,050 to 71,850 m³/h with diameters from 560 to 1,000 mm.

Galvanized steel structure with thermal and acoustic insulation, with glass fiber reinforced polyamide 6 propeller. IE3 class F motors with ball bearings and IP55 protection, three-phase, 4-6 poles. Anti-corrosion finition in galvanized steel sheet.

Documentation CJHCH



Fan HBA

Axial fan with airflow from 2.900 to 21.700 m³/h with diameters from 310 to 1.000 mm.

Bifurcated tubular execution in steel sheet for air circulation up to 150°C continuously and up to 200°C sporadically, with cast aluminium impeller. IE3 class F motors with ball bearings and IP55 protection, single or three phase, 2-4-6 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation HBA



Fan HGI

Axial fan with airflow from 16,000 to 43,000 m³/h with diameter from 800 to 1,250 mm.

Wall-mounted version with a large diameter, designed for high air flows at low speed, with an automatic opening damper. Supporting frame in sheet steel and galvanized steel structure, with galvanized impeller and anti-contact protection grid. Fan specially designed for applications in farms and greenhouses. IE3 class F motors with ball bearings and IP55 protection, three-phase. Anti-corrosion finition in galvanized steel sheet.

Documentation HGI



Fan HGT – HGTX

Axial fans with airflows from 45,700 to 207,500 m³/h with diameters from 1,250 to 1,600 mm.

Large diameter sheet steel tubular design with direct motor (HGT) or external motor (HGTX), with 6 or 9 blade cast aluminium impeller for various angles of inclination. Standard version with short frame (HGT) or long frame equipped with an inspection hatch (HGTX). IE3 class F motors with ball bearings and IP55 protection, three-phase, 6-9 poles. Polyester resin finish polymerized at 190°C with anti-corrosive properties, including pre-greasing with nanotechnological treatment without phosphates.

Documentation HGT_HGTX



Fan HPX

Axial fan with airflow from 2,500 to 68,000 m³/h with diameters from 350 to 1,000 mm.

Transmission driven tubular design, with sheet steel rotating cover casing, with cast aluminium impeller and sealed transmission unit with double retaining ring system. IE3 class F motors with ball bearings and IP55 protection, single or three-phase, 2-4 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation HPX
