A large range of centrifugal fans for industrial ventilation processes with pressure up to 1600 mmCE.



Centrifugal Fans



CRL – Low Pressure

Centrifugal fans with airflow from 1.350 to 12.080 m³/h.

Sheet steel casing and sheet steel reaction blade turbine, for maximum temperature of 120°C. IE3 class F motors with ball bearings and IP55 protection, three-phase, 2-4 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation CRL



CMR – Low & Medium Pressure

Centrifugal fans with airflow from 5.160 to 75.000 m³/h.

Sheet steel casing and sheet steel reaction blade turbine, for maximum temperature of 120°C. IE3 class F motors with ball bearings and IP55 protection, three-phase, 2-4-6 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation CMR



CMP – Medium Pressure

Centrifugal fans with airflow from 135 to 21.000 m³/h.

Sheet steel casing and impeller with forward inclined impeller in galvanized sheet steel, for maximum temperature of 120°C. IE3 class F motors with ball bearings and IP55 protection, single or three-phase, 2-4-6 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation CMP



CMA – Medium & High Pressure

Centrifugal fans with airflow from 265 to 3.550 m³/h.

Casing and impeller made of cast aluminium (polyamide impeller for models 324, 325 and 426, sheet steel impeller for models 531-2T-3), for maximum temperature of 120°C. IE3 motors class F with ball bearings and IP55 protection, single or three-phase, 2 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation CMA



CAM – High Pressure

Centrifugal fans with airflow from 2.430 to 11.390 m³/h.

Sheet steel casing and cast aluminium impeller (sheet steel for models 752, 880, 980), for maximum temperature of 120°C. IE3 class F motors with ball bearings and IP55 protection, three-phase, 2 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation CAM

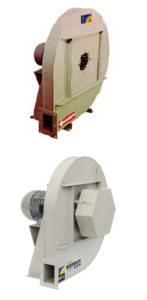

CAS – CAS-S – High Pressure

Centrifugal fans with airflow from 450 to 42.600 m³/h.

Sheet steel casing and backward inclined impeller made of galvanised sheet steel, for a maximum temperature of 120°C. Design (CAS-S) with hexagonal sound attenuator incorporated in the fan inlet of the fan to adjust the air flow rate at the intake. IE3 class F motors with ball bearings and IP55 protection, three-phase, 2 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation CAS_CAS_S



CA – Very High Pressure

Centrifugal fans with airflow from 220 to 2.300 m³/h.

Casing and impeller made of cast aluminium, for a maximum temperature of 120°C. IE3 class F motors with ball bearings and IP55 protection, three-phase, 2 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation CA



CMAT – Dusty Air Transportation

Centrifugal fans with airflow from 300 to 3.115 m³/h.

Cast aluminium casing and straight blade impeller, made of cast aluminium for models 324 to 531 and sheet steel for models 540 to 545, for maximum temperature of 120°C. IE3 class F motors with ball bearings and IP55 protection, three-phase, 2 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentatoin CMAT



CMT – Dusty Air Transportation

Centrifugal fans with airflow from 1.080 to 13.600 m³/h.

Sheet steel casing and straight blade impeller, for maximum temperature of 120°C. IE3 class F motors with ball bearings and IP55 protection, three-phase, 2-4 poles. Anti-corrosive finish of polyester resin polymerized at 190ºC, previously degreased with phosphate-free nanotechnological treatment.

Documentation CMT
